GroLab UserBot Shield for Arduino

COMP0009


A shield that connects your Arduino to GroLab, contains all necessary RF Communications and a complete breakout board for your sensors and circuits.


Includes:


1 - UserBot Shield w/Antenna



*Additional GroLab™ module, one GroNode is necessary to experience the full functionalities of SoilBot.

*Each GroNode can control a max of 4 UserBot's.


Compatibility

Grolab™ flood detector compatible with Arduino

ARDUINO

Warranty Time Icon

2-Years Warranty

30 days devolution Icon

30 Days Money Back

Safe Payment Icon

Safe Payment


Availability

In stock


B B

Send to a friend

GroLab UserBot Shield for Arduino

GroLab UserBot Shield for Arduino

A shield that connects your Arduino to GroLab, contains all necessary RF Communications and a complete breakout board for your sensors and circuits.


Includes:


1 - UserBot Shield w/Antenna



*Additional GroLab™ module, one GroNode is necessary to experience the full functionalities of SoilBot.

*Each GroNode can control a max of 4 UserBot's.


Compatibility

Grolab™ flood detector compatible with Arduino

ARDUINO

Warranty Time Icon

2-Years Warranty

30 days devolution Icon

30 Days Money Back

Safe Payment Icon

Safe Payment


Availability

Recipient :

* Required fields

  or  Cancel

Description

What does GroLab™ UserBot allows me to control?

That's actually up to you! This shield only allows you to connect your Arduino to your GroNode, the sensors and devices that you need are chosen by you.

If you need to control a lamp, you should have a relay, if you need to sample an analogue voltage for any purpose, you need to use Arduino analogue pins or get an external ADC.

This is a plug'n'play shield for your Arduino that does not need any external power, and allows you to interface with whatever sensor or device you may need.

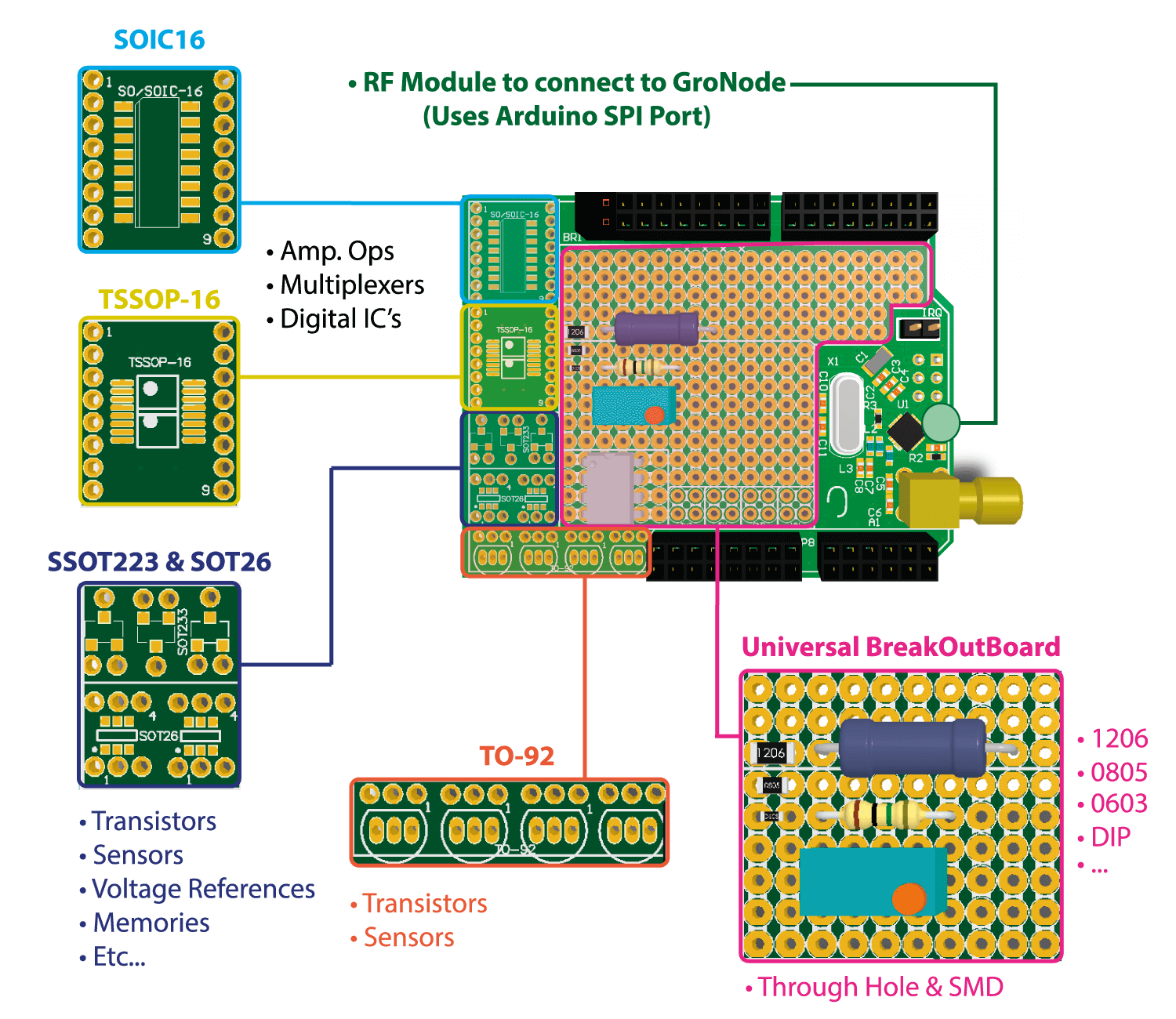

User Bot Shield Details

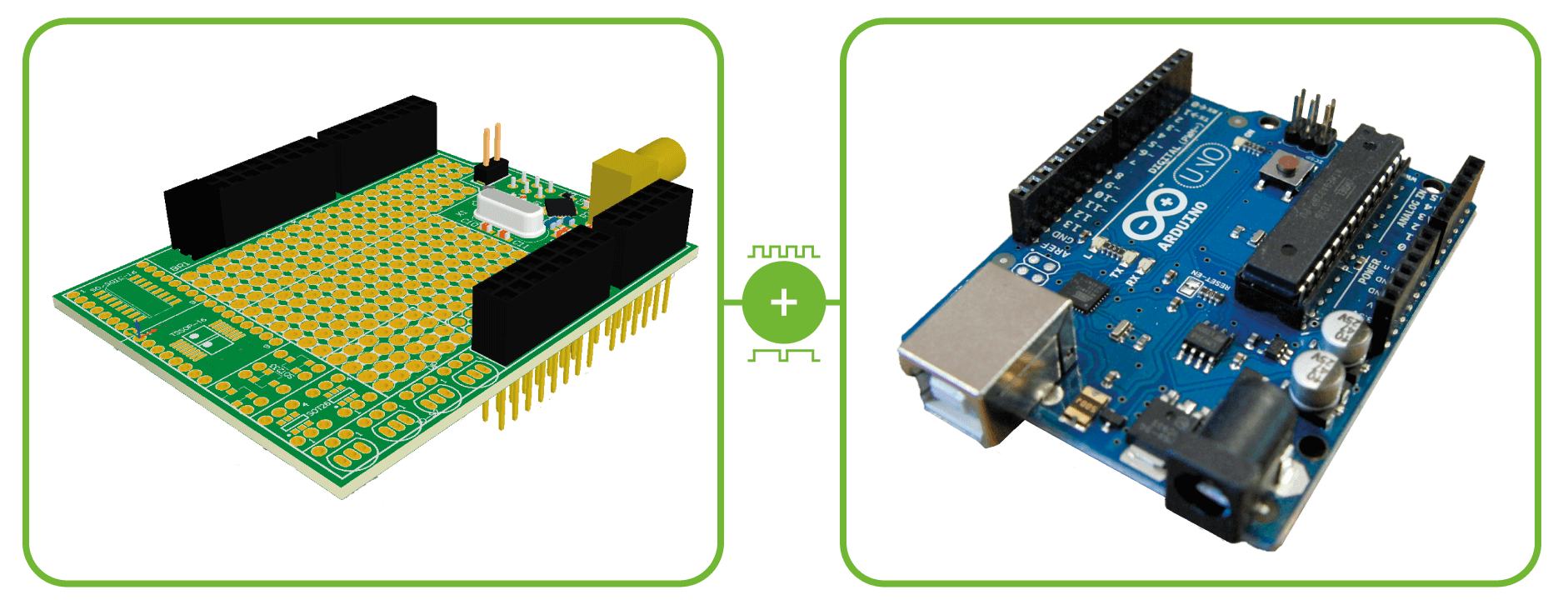

STEP 1 - Install your Shield



User Bot Shield Details

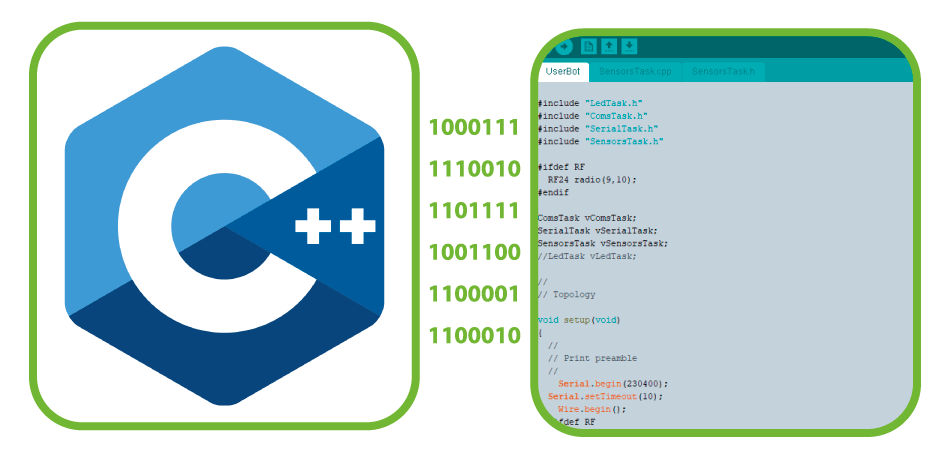

STEP 2 - Download the UserBot source code



User Bot C++ Code

Using the source code for UserBot as base, you should now edit the source code to support your sensors and devices.

You can find all the needed source code to interface your Arduino with GroLab in our public GitHub Repository.

GroLab™ Sensors Public Repository

STEP 3 - Create your schematics

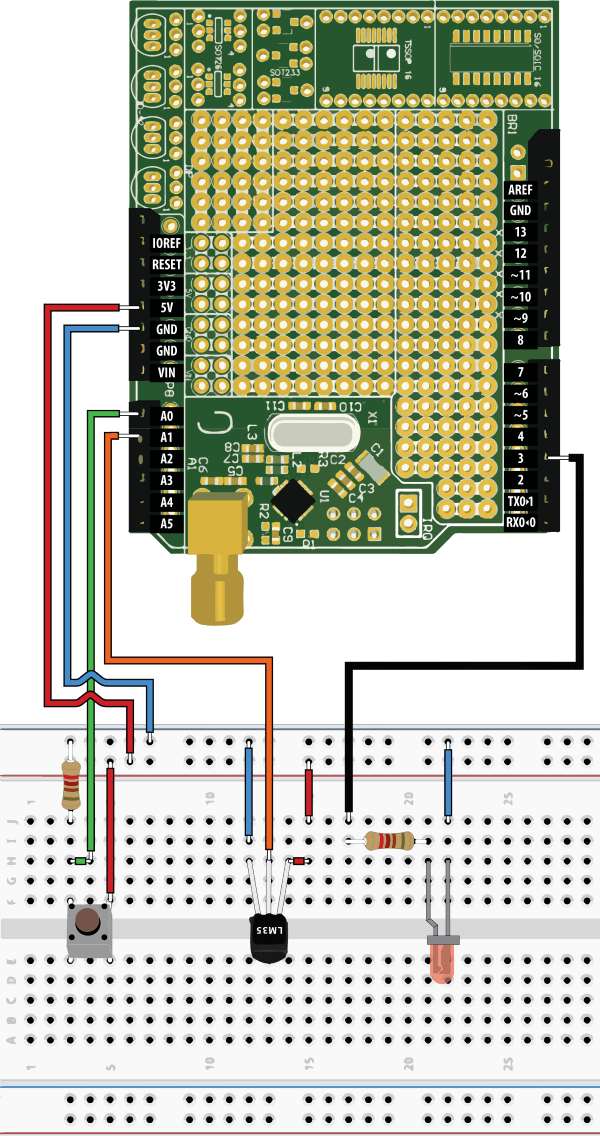

Below you can find the schematic used for example. It's a UserBot that adds a temprature sensor and 3 buttons that can trigger any action in your grow. Install the shield, connect a few wires, upload the code and you get your own user bot running.



GroLab UserBot Shield Example

Specifications

Specifications
Operating Voltage

+3V3 VDC

RF Frequency

2.4 GHz

SMD Sockets

1 x SOIC16

2 x TSSOP 8 (=) 1 x TSSOP 16

3 x SSOT223

2 x SOT26

4 x TO-92

BreakOut Board Spacing

2.54mm - 100mil
