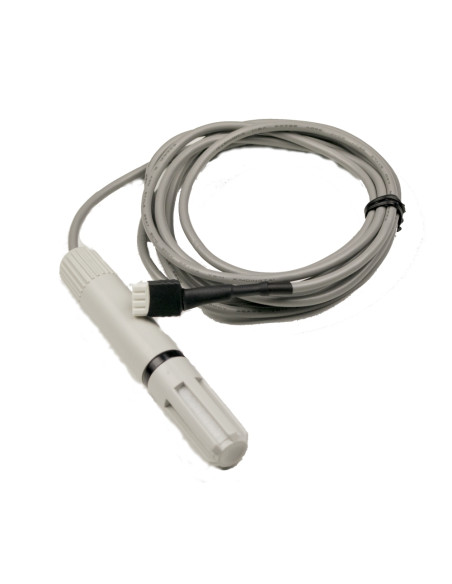

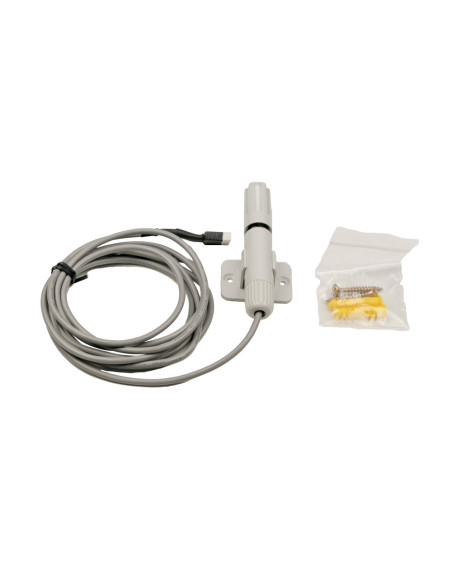

Temperature and Humidity Sensor AM2105A (Pen)
Temperature and Humidity Sensor AM2105A (Pen)
Temperature and Humidity Sensor AM2105A (Pen)
Temperature and Humidity Sensor AM2105A (Pen)
Temperature and Humidity Sensor AM2105A (Pen)
Temperature and Humidity Sensor AM2105A (Pen)

Temperature and Humidity Sensor AM2105A (Pen)

Reference: COMP0045

Climate under Control

Sensor for measuring Temperature and Humidity of an growing environment.

This multifaceted sensor allows you to keep under control the climate for your plants. With a 2 meters cable you can easily connect this sensor to PowerBot and create your own Automated Climate System.

AM2105A is a composite Temperature and Humidity Module with Humidity Capacitor and a calibrated digital signal output.

Communication mode adopts single bus communication mode and standard single bus interface, making system integration easy and quick.

Advantages

Its ultra-small size, extremely low power consumption and signal transmission distance of more than 20 meters make it the best choice for all kinds of applications and even the most demanding applications.

Compatibility

Grolab™ Temperature/Humidity sensor compatible with PowerBot

POWERBOT

Grolab™ Temperature/Humidity sensor compatible with Arduino

ARDUINO

Grolab™ Temperature/Humidity sensor compatible with Raspberry Pi

RASPBERRY PI

In stock
€48.50
Tax included


GroLab PowerBot
In stock
GroLab Modules

GroLab™ PowerBot

Open Grow
MOD0002
€499.99
Smart Control of Electrical Equipment PowerBot is the GroLab™ module that allows precise and safe control of electrical equipment. With four independent sockets, energy consumption monitoring, and remote control, it offers full automation of lighting, ventilation, heating, dehumidification, or any other cultivation device. Each socket can be...
Cable 3 conductors 22 AWG
In stock
Cables & Connectors

Pre assembled Extension Cable - 4 pins - (2/4/6/8/10M)

Open Grow
COMP0034M02
€15.00
Pre-assembled 4 Conductors extension cable with female connection for TankBot/SoilBot/PowerBot and male connector. Used to extend the most varied GroLab cables.   Available in 2m, 4m, 6m, 8m, and 10m versions.   Compatible with: GroLab Persitaltic Cable GroLab Solenoid Cable GroLab Peristaltic + Solenoid Cable GroLab Extension Cable 4pin ->...

How do I use this sensor?

Temperature & Humidity Sensor Interface

This sensor is directly compatible with any PowerBot. It can also be used by third party acquisition devices like an Arduino.

Below you can find the precise schematics and pinouts to interface this sensor with GroLab™ or an Arduino.

PowerBot Connection



GroLab Soil Moisture sensor connection diagram to SoilBot

Arduino Connection



GroLab Soil Moisture sensor connection diagram to Arduino

Temperature & Humidity Sensor Specifications
Dimensions

99.9mm x 16mm x 16mm

Exterior

Casing: Plastic

Colors: Grey

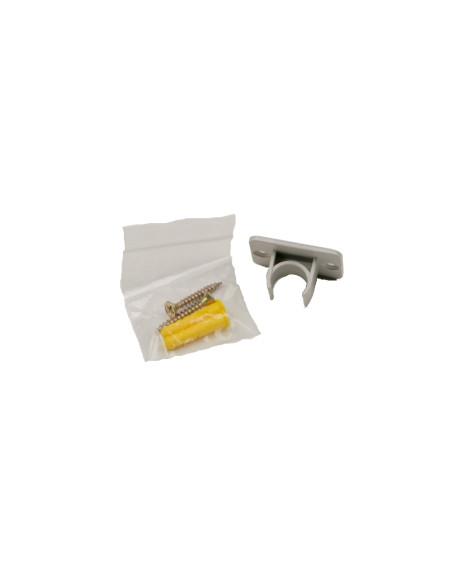

Possibility of Wall-mount

Cable Length

2 meters

Temperature Range

-40ºC ~ 80ºC

Temperature Precision

±0.5ºC

Humidity Range

0% ~ 99.9%

Humidity Precision

±3%

Operating Voltage

3.3V~5.5V

Compatibility

GroLab™ PowerBot

GroLab™ UserBot

Warranty

1-year limited hardware warranty
