Smoke Detector
Smoke Detector
Smoke Detector
Smoke Detector

Smoke Detector

Reference: COMP0013

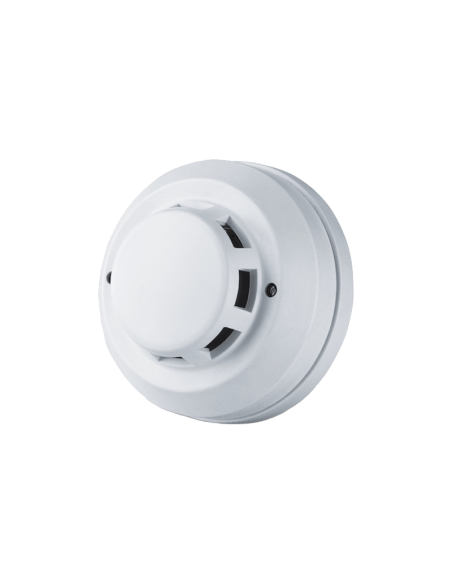

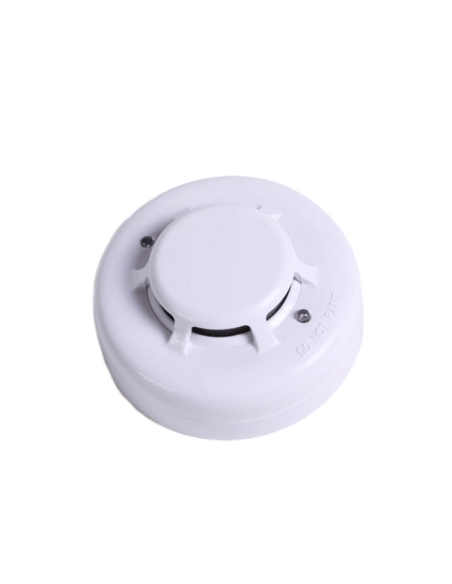

Photoeletric Smoke detector.

Capable of detecting white and black smoke and a 360ยบ detection area, this is a high sensitivity sensor that will alert you in case of fire.

Connect it to TankBot or PowerBot and create your own security system.

Compatibility

Grolab™ moisture sensor compatible with PowerBot

POWERBOT

Grolab™ motion detector compatible with TankBot

TANKBOT

Grolab™ motion detector compatible with Arduino

ARDUINO

Grolab™ motion detector compatible with Raspberry Pi

RASPBERRY PI

In stock
€37.00
Tax included



How do I use this sensor?

Smoke Detector Interface

This sensor is directly compatible with any TankBot or PowerBot. It can also be used by third party acquisition devices like an Arduino.

Below you can find the precise schematics and pinouts to interface this sensor with GroLab™ or an Arduino.

TankBot Connection - External Supply



In this connection, the sensor is powered by an external power supply, and only the relay signal connects to any of the TankBot inputs for sampling.



GroLab Smoke Detector connection diagram to TankBot

TankBot Connection - TankBot direct supply



In this connection, the sensor is powered directly by TankBot (power socket only available in hardware versions equal to HW09 or newer), the the relay signal connects to any of the TankBot inputs for sampling.



GroLab Smoke Detector connection diagram to TankBot

PowerBot Connection



GroLab Smoke Detector connection diagram to PowerBot

Arduino Connection



GroLab Smoke Detector connection diagram to Arduino

Source Code

All the necessary source code to use this sensor with your Arduino can be found in Open Grow™ GitHub Repository

GroLab™ Sensors Public Repository

Visit repository



Smoke Detector Especifications
Operating Voltage

12VDC

Operation Mode

N.O. (Normally open)

Alarm current source

35mA at 12VDC

Connections

4 wire

Indicators

Red LED

Buzzer

Alarm Output

Relay: N.O. (Normally Open)

Buzzer (0.5dB/m (±0.1dB/m)

Case

Material: Plastic

Color: White

Dimensions

53mm (length) x 103mm (diameter)

Compatibility

GroLab TankBot

GroLab PowerBot

GroLab UserBot

Warranty

1-year limited hardware warranty

Viewed products

terra-flores-1l-canna
Last items in stock
CANNA

CANNA Terra Flores 1-20L

Canna
150001300000081
€10.37
CANNA Terra Flores is a complete professional nutrient for the flowering phase of plants. It is specially developed for growing in pots and potting mixes. Terra Flores stimulates the fructification and provides every plant with its characteristic flavour. It can be used for both indoor and outdoor cultivation.
Power Cord 18 AWG - 3 conductors C13 - CEE 7/7 (2.0m)
In stock
Cables & Connectors

PowerBot Power Cord (1.8m) - EU

120000800000020
€8.24
Power Cord - 3 conductors C13 - 5-15P (1.8m). European standard power cord useful to power your PowerBot. Maximum Voltage: 230 VAC Maximum Current: 10 A Compatibility POWERBOT
Water Master Pressure Sprayer 2L
  • New
Last items in stock
Irrigation

Water Master Pressure Sprayer 2L

Water Master
150000800000033
€11.89
The pre-pressure sprayer is a gentle and direct irrigation system for small plantations. It has a system that has a previous filter device in the suction tube and an ergonomic handle. It is a sprayer suitable for the application of insecticides, fertilizers and fungicides. Cleaning is simple, since it can be disassembled with total ease.
Metal Clamp 315mm Blauberg
In stock
Acessories

Metal Clamp 315mm Blauberg

150000700000014
€1.77
Metal Clamp 315mm Blauberg. Useful for fixing the connection tubes with extractors, carbon filters or reductions of diameter.

Customers who bought this product also bought:

Cable 3 conductors 22 AWG
In stock
Cables & Connectors

Pre assembled Peristaltic Cable - (2/4/6/8/10M)

Open Grow
COMP0032M02
€17.00
Pre assembled 4 Conductors cable with female connection for TankBot and quick connectors for Peristaltic Pumps. Supports two different peristaltic pumps.   Available in 2m, 4m, 6m, 8m, and 10m versions.   Compatibile with: NKP Peristaltic KXF Peristaltic KFS Peristaltic Compatibility TANKBOT
GroLab PowerBot
In stock
GroLab Modules

GroLab™ PowerBot

Open Grow
MOD0002
€499.99
Smart Control of Electrical Equipment PowerBot is the GroLab™ module that allows precise and safe control of electrical equipment. With four independent sockets, energy consumption monitoring, and remote control, it offers full automation of lighting, ventilation, heating, dehumidification, or any other cultivation device. Each socket can be...
NKP 12V Peristatic Pump
In stock
Devices

12V NKP Peristaltic Pump

COMP0002A
€32.00
NKP 12V Peristaltic Dosing Pump. This pump can precisely dose liquids. Connect it to TankBot or any other compatible controller, and auto regulate pH and manage your unique nutrient solution. Flow rate range: 10~60ml/min Tube Outer Diameter: 5mm Tube Inner Diameter: 3mm Pump tube selection: Silicon (contact us for other tube variants, PharMed®BPT...
GroLab Hydro Kit
  • Pack
Last items in stock
GroLab Kits

GroLab™ Hydro

Open Grow
COMBO002
€1,298.00
Precision Nutrition, Maximum Growth The GroLab™ Hydro Kit was developed to precisely automate hydroponic, aeroponic, and fertigation systems. It enables intelligent control of dosing pumps, valves, sensors, and nutrient tanks, adjusting irrigation and plant feeding based on real-time data. With this kit, it is possible to create automatic rules based...
Cable 3 conductors 22 AWG
In stock
Cables & Connectors

Pre assembled Extension Cable - 4 pins - (2/4/6/8/10M)

Open Grow
COMP0034M02
€15.00
Pre-assembled 4 Conductors extension cable with female connection for TankBot/SoilBot/PowerBot and male connector. Used to extend the most varied GroLab cables.   Available in 2m, 4m, 6m, 8m, and 10m versions.   Compatible with: GroLab Persitaltic Cable GroLab Solenoid Cable GroLab Peristaltic + Solenoid Cable GroLab Extension Cable 4pin ->...
Flood Detector
Last items in stock
Peripherals & Extras

GroLab Flood Detector

Open Grow
COMP0006M02
€25.00
Sensor that detects water excesses and leaks. Its able to provide your grow, flood prevention and detection. Easily connect this flood detector to your SoilBot or PowerBot and maintain your grow protected from flood risks. Compatibility POWERBOT SOILBOT ARDUINO RASPBERRY PI
Cable 3 conductors 22 AWG
In stock
Cables & Connectors

Pre assembled Solenoid Cable - (2/4/6/8/10M)

Open Grow
COMP0033M02
€17.00
Pre assembled 4 Conductors cable with female connection for TankBot and quick connectors for Solenoid Valves. Supports two different solenoid valves.   Available in 2m, 4m, 6m, 8m, and 10m versions.   Compatibile with: Solenoid Valve 3/4" Solenoid Valve 1/2" Compatibility TANKBOT

16 other products in the same category:

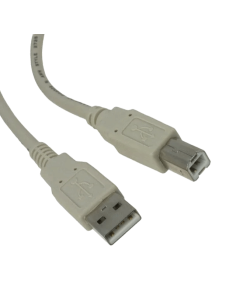

CABLE USB 2.0 A-B MALE (2.0m)
