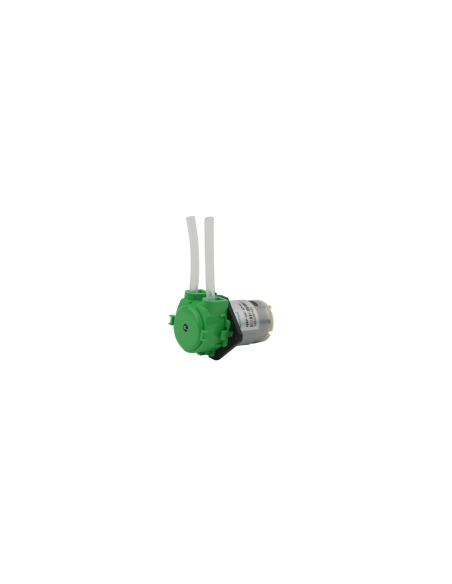

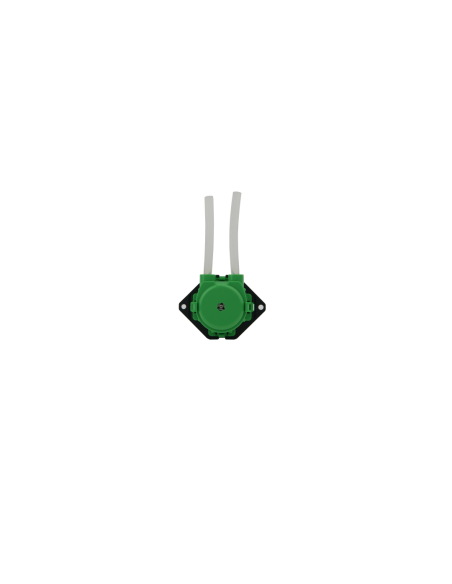

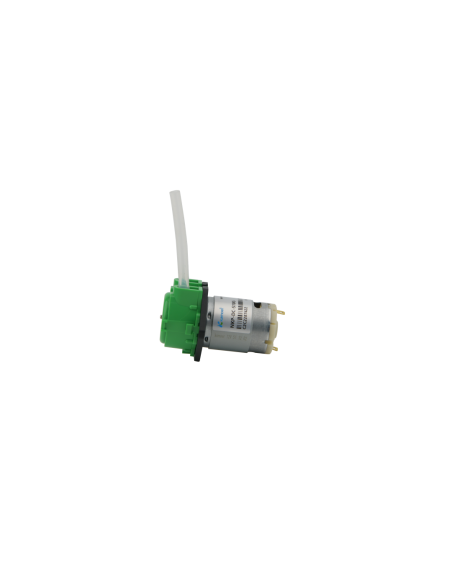

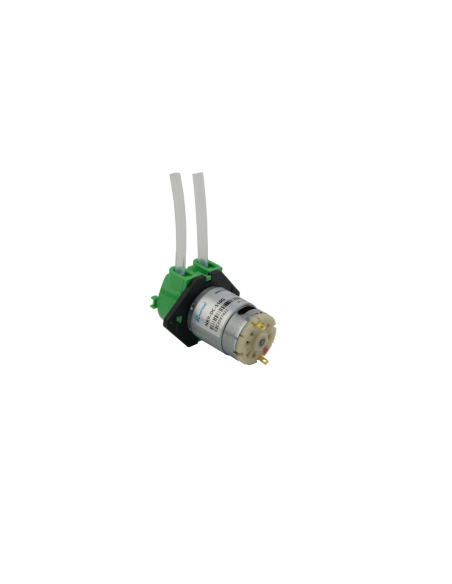

12V NKP Peristaltic Pump

Reference: COMP0002A

NKP 12V Peristaltic Dosing Pump.

This pump can precisely dose liquids.

Connect it to TankBot or any other compatible controller, and auto regulate pH and manage your unique nutrient solution.

  • Flow rate range: 10~60ml/min
  • Tube Outer Diameter: 5mm
  • Tube Inner Diameter: 3mm
  • Pump tube selection: Silicon (contact us for other tube variants, PharMed®BPT tube, Viton)

Compatibility

Grolab™ peristaltic pump compatible with TankBot

TANKBOT

Grolab™ moisture sensor compatible with Arduino

ARDUINO

In stock
€32.00
Tax included



How do I use this device?

Peristaltic Pump Interface

This device is directly compatible with any TankBot.

Below you can find the precise schematics and pinouts to interface this sensor with GroLab™

Tankbot Connection



GroLab peristaltic pump connection diagram to TankBot



NKP_Mech_Drawings
laughing Download 3D STEP File

NKP Peristaltic Pump Specifications
Operating Voltage

12VDC

Consumption

4.8W~0.4A

Operating temperature range

0 to 40°C

Operating humidity Range

<80%

Flow rate

58ml/min (range: 10ml/min-60ml/min)

Tube length

175mm lenght (49.5mm exposed)

Tube outer Diameter

5 mm

Tube inner Diameter

3 mm

Tube Material

Silicon

Exterior

Material: Plastic pump head + metal

Colors: green (plastic)

Dimensions

75x54x40mm

Compatibility

GroLab TankBot

Arduino w/ Motor Driver

Warranty

1-year limited hardware warranty
